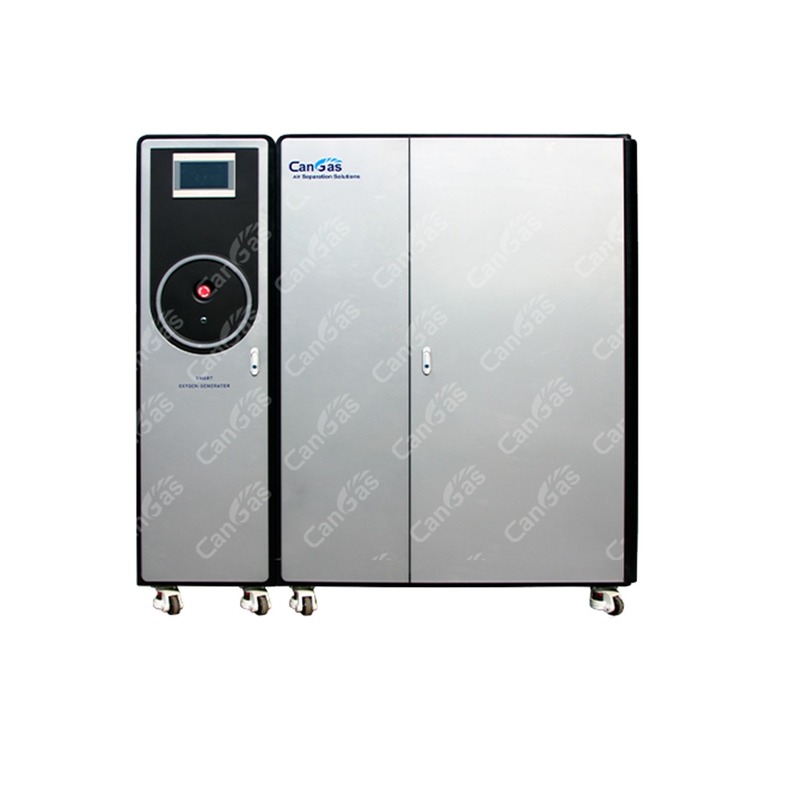

Hotels Integrated PSA Oxygen Generator Mobile Oxygen Plant Oxygen Generator

1.0 Sets
MOQ
Hotels Integrated PSA Oxygen Generator Mobile Oxygen Plant Oxygen Generator
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Food Shop, Construction works , Energy & Mining, Other
Showroom Location: United States, Viet Nam, Philippines, Indonesia, Russia, Bangladesh
Condition: New
Usage: Oxygen
Production Rate: 100%
Voltage: 220V
Weight: 650 KG
Dimension(L*W*H): 1600*900*1600mm
Warranty: 1 year
Key Selling Points: Long Service Life,high quality,small size,plug and play
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: PLC, Pressure vessel
After-sales Service Provided: Engineers available to service machinery overseas
purity: 93%
Dew point: ≤-40℃
Name: PSA Oxygen generator
Technology: Pressure Swing Adsorption(PSA)
Flow rate: 2000LPM
Capacity: 2Nm3/h
PLC: Siemens
Installation: Free installation
Standard: GB
Informação básica
Condições de Pagamento e Envio
Packaging Details: Standard export wooden case package
Supply Ability: 100 Set/Sets per Month
Descrição de produto


The principles of Pressure Swing Adsorption (PSA) oxygen generator are adsorption and desorption.

Each gas has a characteristic adsorption rate that when adsorbed by Zoelite Molecular Sieve (ZMS). ZMS has large surface area containing volumes of micro pores and passageways. Nitrogen has a higher adsorption rate than oxygen. When compressed air enters ZMS, Oxygen molecules are able to pass through this large surface, and nitrogen molecules are adsorbed to the surface area.

  Adsorption and diffusion are the general principles of the PSA system since each gas has a characteristic adsorption rate that is a function of its ability to be adsorbed by a molecular sieve. The adsorption process can produce a range of gas with purities 90%-99%  oxygen.


 CanGas® C series  SMART O2 generators are developed for the small size of health care facilities and commercial applications, especially for low flow rate of O2 usage, a stand alone system with highly compact, plug and run design and versatile adaptability, the C series SMART O2 System is excellent in performance, stability and convenience.

Key Features
* Compact: Built-in high quality oil-injected screw compressor, dryer and Multi-stage filters.
* Reliable and stable: 7*24hrs design, no performance degradation
* Low Noise: Sturdy and noise reduction Industrial cabinet
* Convenient and easy installation: Plug in and run design
* High Efficiency: Low power consumption
* Reliable: 10 years plus time-proven PSA technology
* Versatile Configuration Options: High adaptability

Model
SMART-CAP-O-3/2C
 SMART-CAP-O-3/3C
 SMART-CAP-O-5/5C
O2 Purity
93% ±3%
O2 Flow Rate
2~2.5m3/h
3~3.5m3/h
5m3/h
Delivery Pressure
2-4 bar
Power
5~8kw, 380V, 50Hz, 3-phase
Dimension
                                               1600*900*1600mm
Weight
650kg
750kg
Standard Configuration
Air compressor +air dryer+ filters + oxygen generator
One of the most experienced manufacturer of air separation Unit(ASU) in China
CAN GAS is one of the first air separation technology developing companies in China, dedicated to researching and developing more suitable onsite medical gas solutions for hospitals

Most professional Nitrogen generator manufacturer in China

（1）Since establishment, R&D and production of ASU is our professional field
（2）The only company own High-tech enterprise and new tech product/service certificate
（3）The most patent certificate and software copyright. ；
（4）Unique company covering business sectors,
medical, commercial and artificial environment
（5）Trusted by customers and distributors




    5. With more than 21 years experienced, we has formed a complete system from R&D, design, manufacture, sales to service.









We have the largest professional production base in China, covers an area of 28,000m2.


With more than 4,000 systems built worldwide since 1998, CAN GAS Systems win the respect with their reliability, cost-effectiveness, convenience and excellent services.

2003, CAN GAS cooperated with Chinese PLA Air Force, started to supply NL Altitude Simulator for training Chinese astronauts.

2008, CAN GAS supplied nitrogen generator for Beijing Olympics food testing center.

In 2013, we built a large-scale plateau oxygen-enriched system for Jiaduobao Group Qinghai Yuzhufeng Mineral Water Co., Ltd., which is currently the highest altitude and largest oxygen-rich system project in China.

In 2015,  CAN GAS provided the PLA the plateau with on-site oxygen generator system. The operating temperature of the equipment is -40 ° C ­ - 70 ° C, the use of altitude is more than 4,500 meters.

In 2016, Oxygen generator system provided to National Engineering Laboratory for Antitumor Protein Drugs


Exhibition in Brazil
Exhibition in Russia
Exhibition in Indonesia

CIPPE

.

CIMES

CANTON FAIR

Application
Function
Hospital
Medical oxygen for breath
Burning process (glass craft, ampoule making, thermal power)
Enhances burning efficiency
Ozone generation
Raw material to make O3
Waste water disposal
Oxidization of waste content
Aquaculture
Oxygen enriched water improves life of fishes
Fermentation
Better atmosphere for fermentation
Diving, mountaineering,
For breathing
High-altitude flight, interplanetary flight, civil aviation
For breathing
Cutting, welding
Burns to produce heat
Engineering Blasting
To make liquid oxygen explosive
Metallurgy
Iron making, steelmaking
Oxygen enriching
Bar, meeting room, office, dorm, homes
Mining
Reacts with minerals to increase separation rate
Chemical engineering
To make vitriol, nitric acid, etc
Paper and pulp
Pulp bleaching
